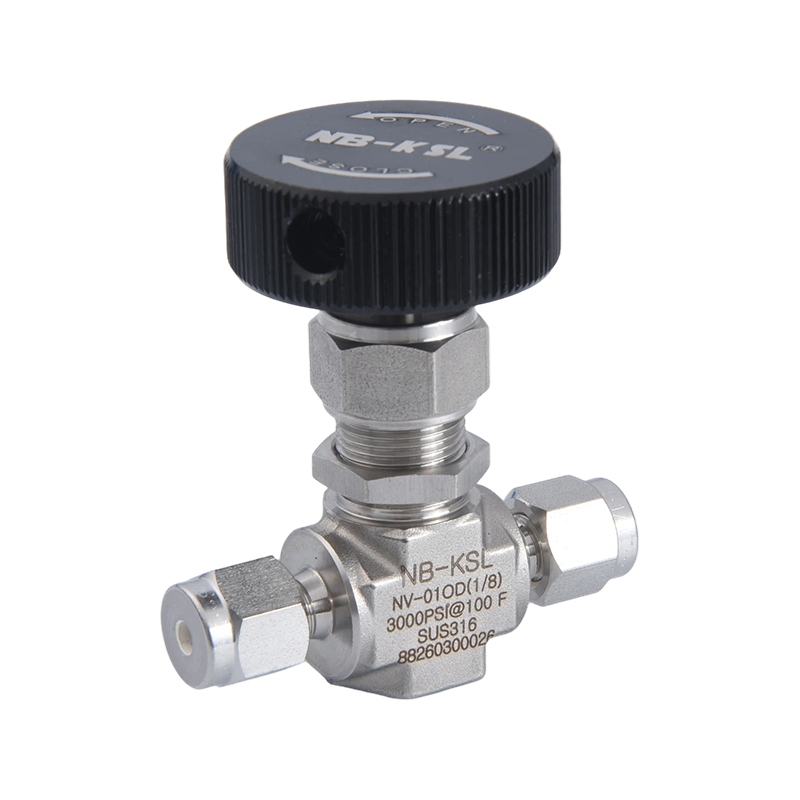

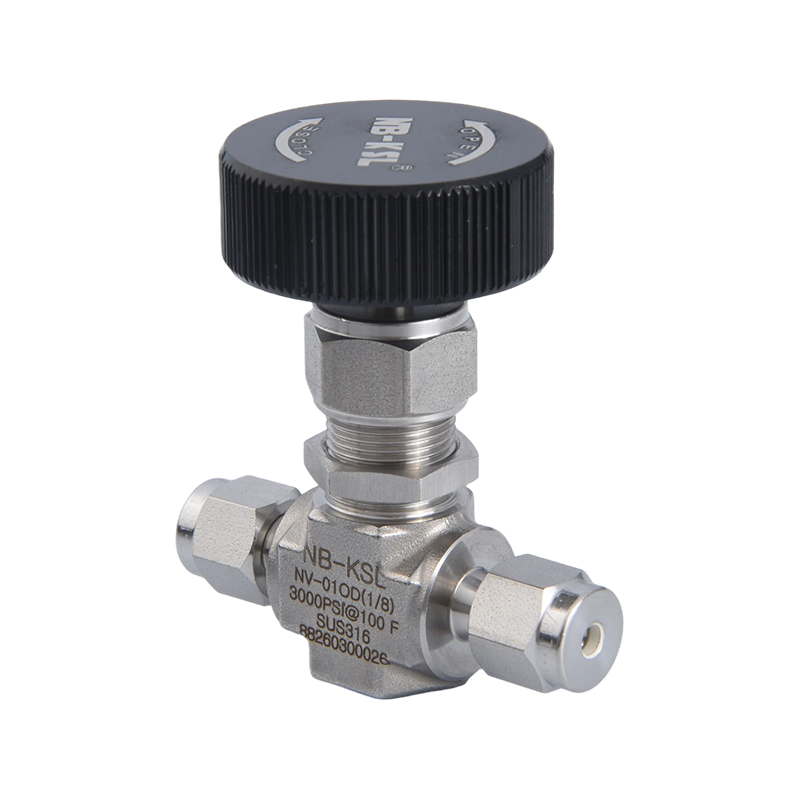

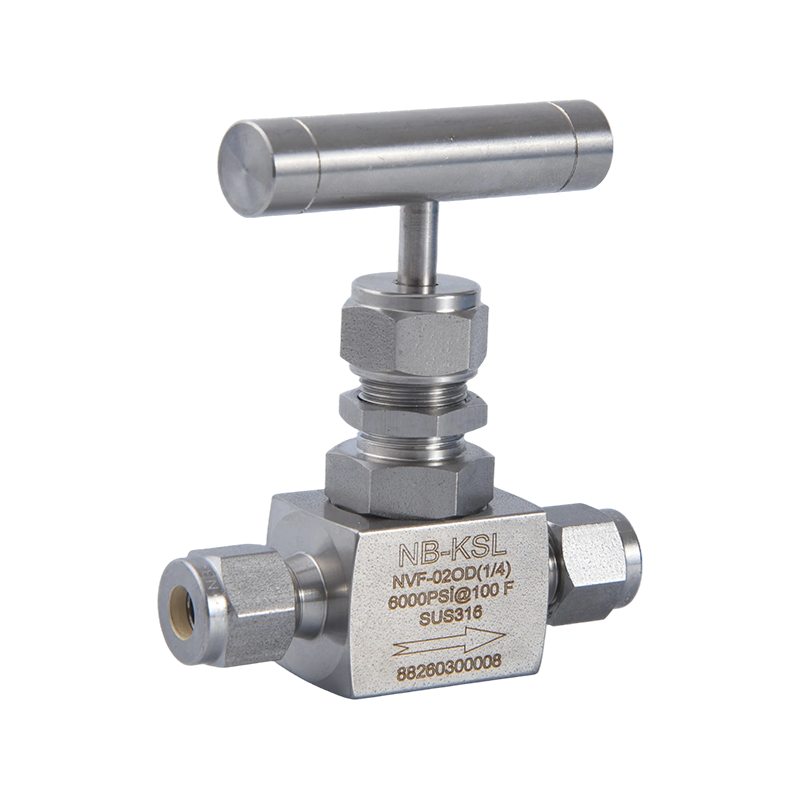

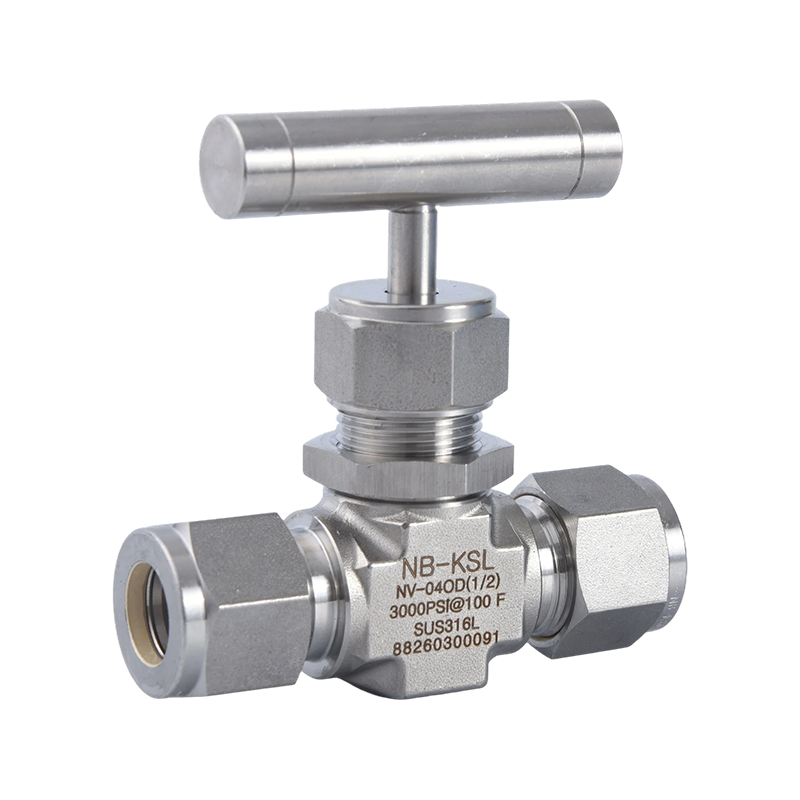

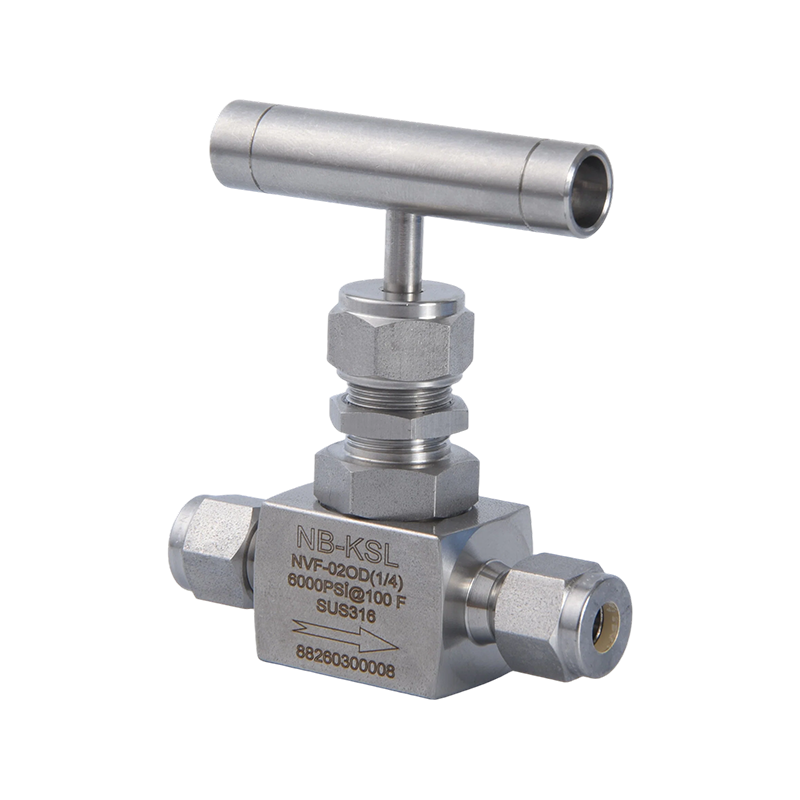

Nadelventile mit verschraubter Haube aus 316L-Edelstahl

Funktionen
Arbeitsdruck bis zu 10.000 psi (689 bar).
Temperaturbereich von -54 °C bis 232 °C mit Standard-PTFE-Packung und bis zu 648 °C mit optionaler Grafoil-Packung.
Gehäusematerial erhältlich in 316SS, Kohlenstoffstahl und Alloy 400 (Monel).
Arbeitsdruck bis zu 10.000 psi (689 bar).
100 % werkseitig getestet.

  • Beschreibung
  • Kontaktieren Sie uns

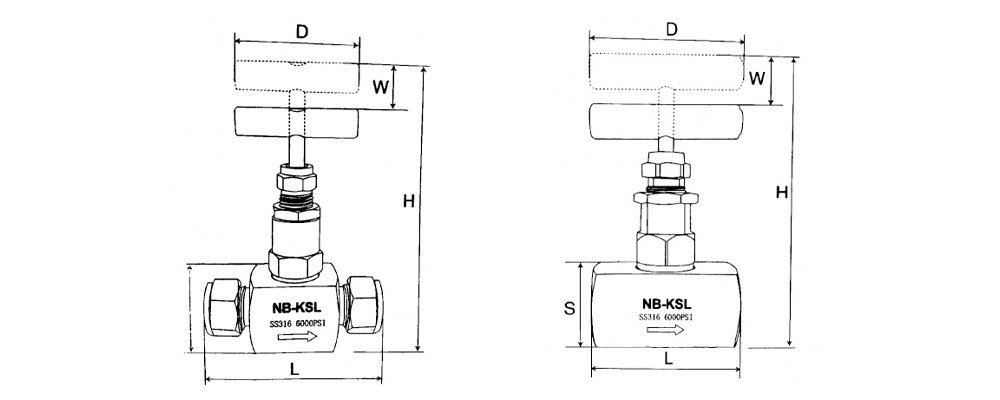

NVF-Gehäuseanschlussstift-Ventil-Abmessungstabelle

Bestellmodell

Größe

D

D1

L

H

S

W

NVF-02OD

1/4LOK

55

3

65

74

22

4

NVF-03OD

3/8LOK

55

5

65

74

22

4

NVF-04OD

1/2LOK

55

6

77

96

28

5

NVF-06OD

3/4LOK

55

7

77

96

28

5

NVF-08OD

1"LOK

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10mmLOK

55

5

65

74

22

4

NVF-12OD

12mmLOK

55

6

77

96

28

5

NVF-14OD

14mmLOK

55

7

77

96

28

5

NVF-16OD

16mmLOK

55

7

77

96

28

5

NVF-18OD

18mmLOK

55

7

77

96

28

5

NVF-20OD

20mmLOK

75

10

92

117

38

7

NVF-22OD

22mmLOK

75

10

92

117

38

7

NVF-25OD

25mmLOK

75

10

96

119

40

7

Maßtabelle für Nadelventile mit NVF-Gewindeanschluss

Bestellmodell

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


NVF-Schraubnadelventil-Außenabmessungstabelle

Bestellmodell

P

D

D1

L

H

S

W

NVF-10W

10mm

55

5

108

74

22

4

NVF-12W

12mm

55

6

122

96

28

5

NVF-14W

14mm

55

6

122

96

28

5

Die oben genannten Größenangaben dienen nur als Referenz. Etwaige Änderungen werden nicht gesondert bekannt gegeben. Wenn keine Spezifikationen angegeben sind, erkundigen Sie sich bitte beim Hersteller nach einer individuellen Anpassung.
