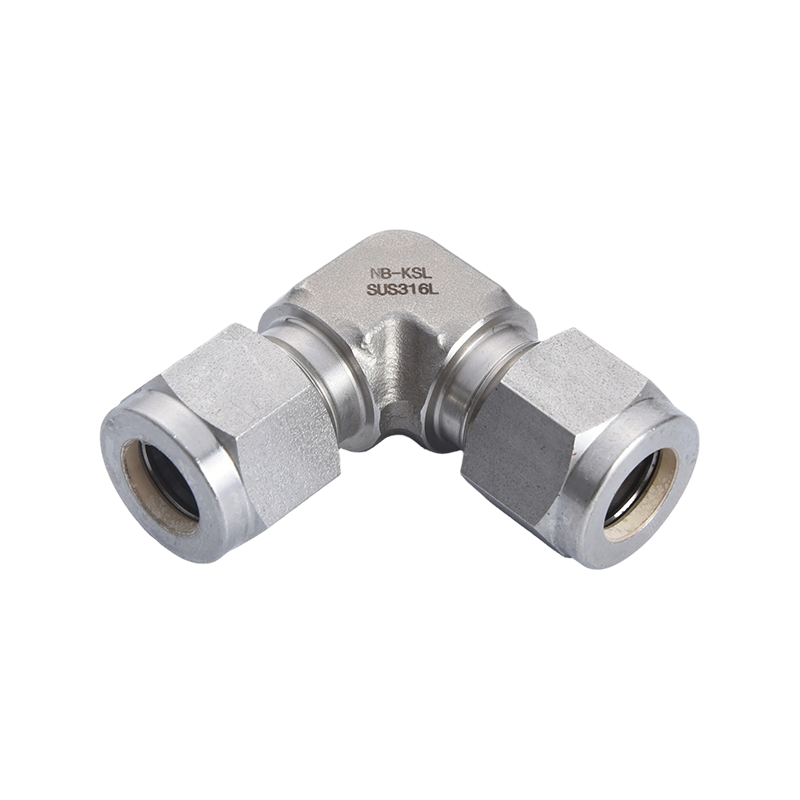

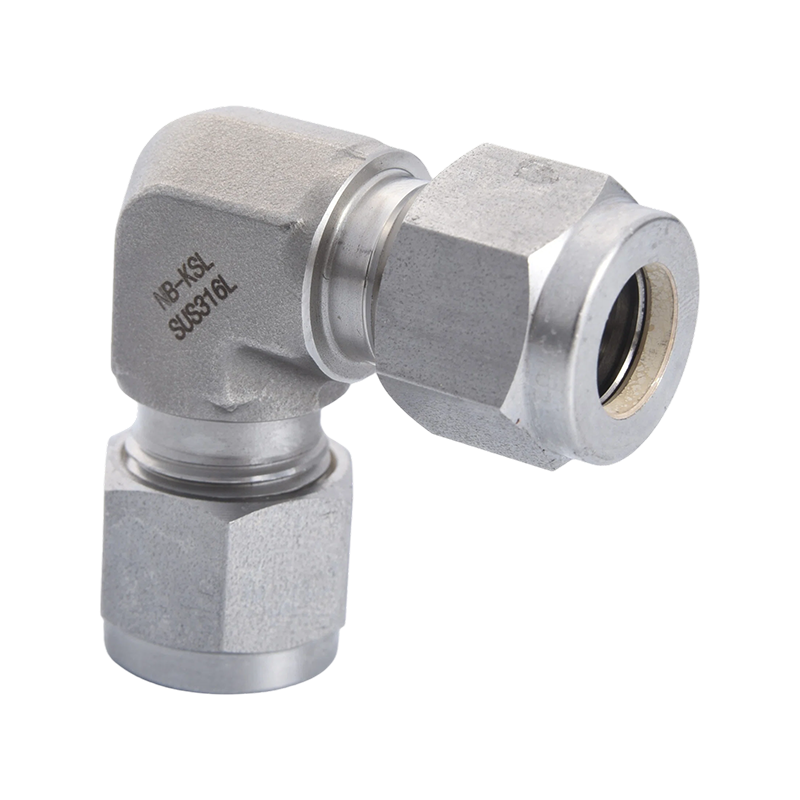

Klemmverschraubungswinkelstück aus Edelstahl 316L

Bei komplexen Rohrleitungsanordnungen ist eine 90-Grad-Kurve häufig der Ort, an dem Druckschwankungen und Strömungswiderstände am stärksten konzentriert sind. Unser 316L-Edelstahl-Doppelklemmring-Winkelstück wurde speziell für diese Herausforderung entwickelt. Es handelt sich nicht nur um einen Richtungsstecker; Es ist eine robuste Erweiterung des Sicherheitsbereichs Ihres Systems.

Warum diesen Ellenbogen wählen?
Präzisionsgeschmiedeter Körper: Im Gegensatz zu preisgünstigen geschweißten Alternativen wird dieses Produkt im 316L-Präzisionsschmiedeverfahren hergestellt. Dadurch wird das Risiko einer Spannungskonzentration im Zusammenhang mit Schweißnähten eliminiert. Der optimierte interne Strömungsweg minimiert den Druckabfall beim Durchgang des Mediums durch die Kurve.
Ultimative Materialreinheit: Die Sorte 316L mit extrem niedrigem Kohlenstoffgehalt bietet erstklassige Korrosionsbeständigkeit. Die strukturelle Integrität bleibt auch bei längerer Einwirkung von Sauergas, Meersalznebel oder aggressiven Halbleiterprozessgasen erhalten.
Hervorragende Dichtungsleistung: Durch die Verwendung einer mechanischen Verriegelungsstruktur mit doppelten Ferrulen greifen die Ferrulen beim Festziehen präzise in die Rohroberfläche ein, um eine gasdichte Metall-auf-Metall-Dichtung zu schaffen. Es zeigt außergewöhnliche Stabilität unter ultrahohen Drücken (bis zu 6000 psi) und extremen Temperaturwechseln.
Räumliche Layout-Effizienz: Das kompakte Design ermöglicht eine präzise Rohrinstallation in engen Gehäusen oder Schalttafeln und stellt sicher, dass Ihr Systemlayout sowohl ästhetisch als auch professionell bleibt.

  • Beschreibung
  • Kontaktieren Sie uns

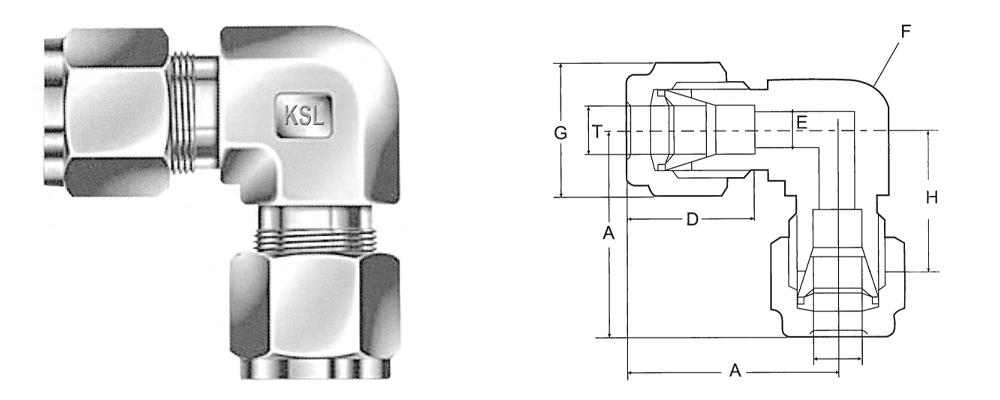

(METRISCH)

KATALOGNUMMER

ROHR-A.D

A

D

E

F

G

H

UE-3-0

3

23.5

13.5

2.4

9.5

12

16.5

UE-4-0

4

25.8

13.7

3

12.7

12

19.1

UE-6-0

6

27.8

15.8

4.8

12.7

14

20

UE-8-0

8

28.7

16.7

6.4

15

16

21

UE-10-0

10

31.6

19.6

7.9

17

19

24

UE-12-0

12

36.7

23.8

9.5

21

22

25.9

UE-14-0

14

38.8

24.8

11.1

24

27

28

UE-15-0

15

38.4

24.4

11.9

24

27

28

UE-16-0

16

38.4

24.4

12.7

24

27

28

UE-18-0

18

39.3

24.8

15.1

28

30

28.5

UE-20-0

20

43

25.5

15.9

32

32

32.5

UE-22-0

22

43

25.5

18.3

32

32

32.5

UE-25-0

25

47.7

31.7

21.8

34.5

38

35


(FRAKTIONAL)

UE-01-0

1/8

24

14

2.4

9.5

12

16.5

UE-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

UE-03-0

3/8

30.7

19.6

7.1

17

17

23.1

UE-04-0

1/2

36.3

23.4

10.4

21

22

25.9

UE-05-0

5/8

38.4

24.4

12.7

24

27

28

UE-06-0

3/4

38.9

24.4

15.7

28

30

28.5

UE-08-0

1"

47.7

31.7

22.4

34.5

38

35
